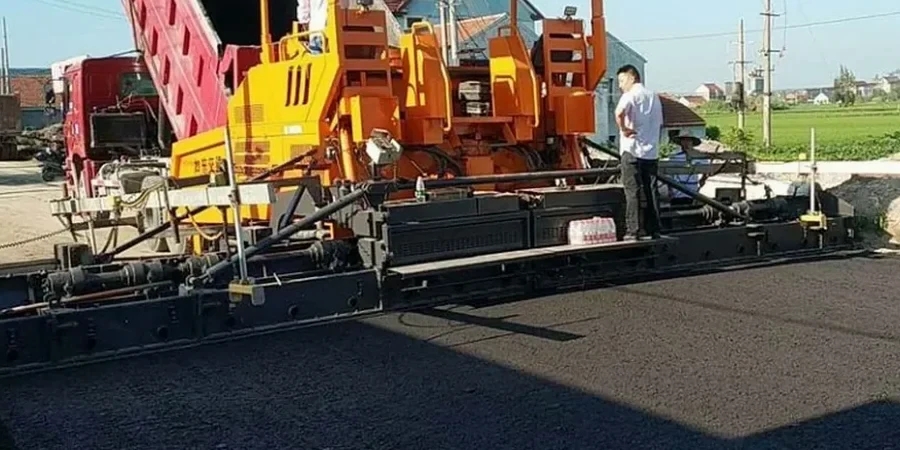

The ground beneath a road in Fulwood behaves nothing like the fill material you find along the Don Valley corridor. Up in the western suburbs, you hit weathered sandstone and shale just a few hundred millimetres down, while the east side of Sheffield sits on thick alluvial deposits with a high water table. This contrast means a standard pavement section simply will not perform the same way across the city. Our flexible pavement design work starts with this simple fact: the subgrade dictates everything. Before we specify a single bituminous layer, the team runs a full ground investigation to BS 5930, pulling CBR testing for roads data from in-situ plate tests and lab-soaked California Bearing Ratio samples. For projects near the River Sheaf, where soft silty clays appear unexpectedly, we sometimes pair this with in-situ permeability tests to check drainage capacity under the formation level, because trapped water in the capping layer can ruin a pavement in two Sheffield winters.
A flexible pavement is only as durable as the subgrade it rests on. In Sheffield, the key is matching the granular layer stiffness to the actual CBR of the formation, not the assumed one from a desk study.
Process and scope
On a recent project near the old Kelham Island district, the team set up a heavy dynamic cone penetrometer right on the old industrial fill, driving it down metre by metre while the lab crew ran parallel grading tests on recovered material. The machine itself is a straightforward piece of kit, a sliding hammer dropping onto an anvil, but in Sheffield's mixed ground it tells you more about layer stiffness than a visual inspection ever could. We cross-check those DCP results against laboratory resilient modulus estimates, building a picture of how each layer will distribute traffic loads from the surface course down to the subgrade. The design process then moves into layer thickness calculation using a mechanistic-empirical approach, where we model the tensile strain at the bottom of the asphalt and the compressive strain on top of the subgrade. The output is a build-up that might combine a dense bitumen macadam binder course with a thin surface course, sitting on a graded granular sub-base that doubles as a frost protection layer. Sheffield's average winter temperatures demand this, especially on exposed sites up near the Peak District fringe where freeze-thaw cycles are more aggressive than in the city centre bowl.
Local geotechnical context
Sheffield sits on the edge of the Pennine coal measures, a geological setting that brings more variability than many engineers expect. Weathered mudstone can look competent in a trial pit and then soften rapidly when exposed to air and water during construction. In the lower Don Valley, pockets of laminated clay and organic silt appear at shallow depth, often with undrained shear strengths below 40 kPa. A flexible pavement built over these materials without adequate capping will rut within the first year, not because the asphalt failed but because the subgrade deformed under repeated loading. The same risk applies to car parks constructed on former industrial plots where old foundations and buried services leave hard spots adjacent to loose backfill. Differential settlement across the pavement width creates longitudinal cracking that water gets into, and once that cycle starts the repair costs climb fast. Our approach includes a thorough desk study of historical maps before any site work begins, cross-referenced with the British Geological Survey's Sheffield sheet.
Questions and answers
What does flexible pavement design cost for a typical commercial project in Sheffield?
For a full design package covering ground investigation, laboratory testing, and the pavement layer specification, fees in the Sheffield area generally range from £1,250 to £3,830. The final figure depends on the site size, the number of boreholes or trial pits required, and the complexity of the traffic loading analysis.
How do you account for Sheffield's old industrial fill in the pavement design?
Old fill is common across the Don Valley and Kelham Island areas. We use dynamic probing and trial pitting to map its extent and consistency, then correlate those results with laboratory grading and plasticity tests. If the fill is too variable, the design includes a thicker capping layer and a geogrid reinforcement to bridge soft spots, preventing differential settlement from reaching the asphalt.
Which British standards govern your flexible pavement designs?
The design follows the Design Manual for Roads and Bridges CD 225 for layer thickness and material properties, with ground investigation carried out to BS 5930. Asphalt materials are specified to the BS EN 12697 series, and all earthworks and granular layers comply with the Specification for Highway Works Series 600 and 800.
